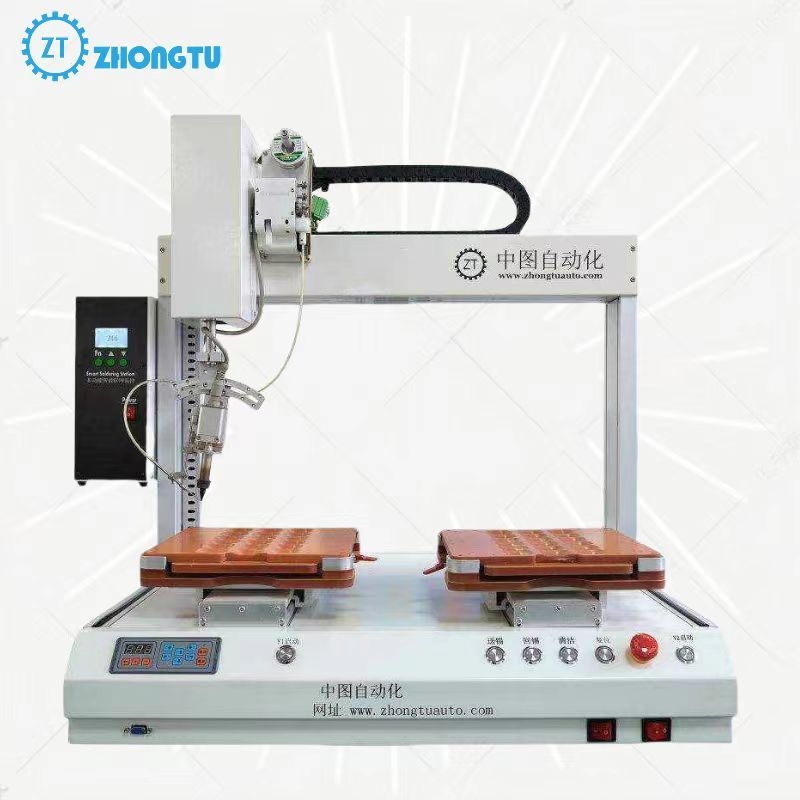

Automatic Soldering Machine for PCB with PLC Control 220V

Name: Automatic Soldering Machine for PCB with PLC Control 220V
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ441-R

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 3100-3500/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                PLC control soldering machine, automatic PCB soldering machine, 220V automatic soldering machine


Product Name:	Automatic Soldering Machine	Transport Package:	Wooden Box
Specification:	807885cm	Air Source:	0.4-0.6MPA
Power Supply:	AC 220V 50Hz	Operating Range:	X400Y:400 Z100mm
Control System:	Microcomputer	Power Consumption:	100W
Core Components:	PLC, Motor	Dimensions:	720 X 700 X 810mm (W X D X H)

Product Name:	Automatic Soldering Machine
Transport Package:	Wooden Box
Specification:	807885cm
Air Source:	0.4-0.6MPA
Power Supply:	AC 220V 50Hz
Operating Range:	X400Y:400 Z100mm
Control System:	Microcomputer
Power Consumption:	100W
Core Components:	PLC, Motor
Dimensions:	720 X 700 X 810mm (W X D X H)

Product Description

Automatic Soldering Machine for USB Circuit Board PCB Spot Welding

Product Attributes

Attribute	Value
Product Name	Automatic soldering machine
Transport Package	Wooden Box
Specification	807885cm
Air Source	0.4-0.6MPA
Power Supply	AC 220V 50Hz
Operating Range	X400Y400Z100mm
Control System	Microcomputer
Power Consumption	100W
Core Components	PLC, Motor
Dimensions	720 x 700 x 810mm (W x D x H)

Core Features

Soldering: Joins electronic components to the board using heat to melt solder
Solder Dispensing: Automatically applies solder paste or wire to specific locations on circuit boards
Reflow Soldering: Melts solder paste to create strong electrical connections, ideal for surface mount technology

Technical Specifications

Parameter	Value
Name	Automatic Soldering Robot
Place of Origin	ShenZhen, China
Applicable Industries	Manufacturing Plant, SMT, DIP
Key Selling Points	Automatic Operation
Weight	65Kg
Voltage	220/110V 50~60Hz
Warranty Period	1 Year
Core Components Warranty	3 Years
Solder Wire	0.6~1.5mm solder wire
Temperature Accuracy	±3°
Solder Feeding Speed	1~50mm/s
Repeat Accuracy	±0.02mm

Model Specifications

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Available
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Product Images

Our Advantages

Factory direct manufacturer
Reduces overall production costs
Enhances automation capabilities
Improves information management
Increases product yield rates
Provides advanced system solutions for automation equipment

Our Services

Pre-Sale	In Sale	After Sale
Product Introduction Technical Communication Remote consulting service	Product demonstration Detailed usage instructions Customer question support	Video support service 1-year full equipment warranty 3-year warranty for guide rail/motor/control parts

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2015, with 50-200 employees in our office.

How do we guarantee quality?

Pre-production samples before mass production; final inspection before shipment.

What products do we offer?

Soldering machines, precision spot welding machines, glue dispensers, screw machines.

Why choose us?

We provide professional service and high-performance equipment at competitive prices.

What services do we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

What is your warranty policy?

1-year warranty for unit machine and 3-year warranty for main board. Contact us for details.

Can I order samples?

Yes, sample orders are welcome to test our quality and service.

Are you a manufacturer or trading company?

We are professional automation machine manufacturers since 2015.
