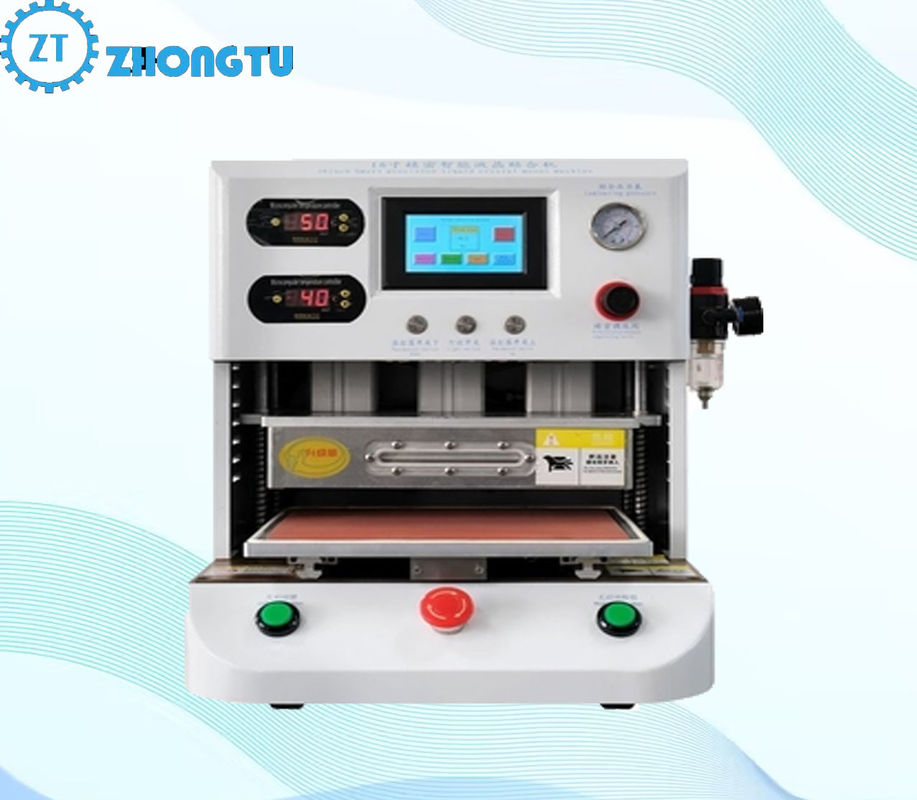

High-Precision OCA Vacuum Laminator for Touchscreens and Flexible PCBs

Name: High-Precision OCA Vacuum Laminator for Touchscreens and Flexible PCBs
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-ZQBY510
Price: 943.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE

Model Number: ZT-ZQBY510

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: USD888-999/SET

Packaging Details: Wooden Box

Delivery Time: 15-30Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Power Supply:	AC 220V/110V	Model:	Vacuum Laminator
Laminating Area:	Up To 7 Inches	Temperature Range:	0-200℃
Transport Package:	Wooden Box	Specification:	404050cm
Model No:	ZT-ZQBY510	Laminating Pressure:	0.4-0.6Mpa
Laminating Time:	1-3 Minutes	Heating Method:	Constant Temperature Heating

Power Supply:	AC 220V/110V
Model:	Vacuum Laminator
Laminating Area:	Up To 7 Inches
Temperature Range:	0-200℃
Transport Package:	Wooden Box
Specification:	404050cm
Model No:	ZT-ZQBY510
Laminating Pressure:	0.4-0.6Mpa
Laminating Time:	1-3 Minutes
Heating Method:	Constant Temperature Heating

Product Description

High-Precision OCA Vacuum Laminator for Touchscreens and Flexible PCBs

Overview: Our OCA Laminating Machine series is precision-engineered to deliver bubble-free adhesion and uniform pressure distribution, ideal for industries such as display production, touch panel assembly, and optical component fabrication.

Key Features:

Vacuum Environment: Creates an air-free chamber to eliminate air bubbles during lamination, ensuring perfect contact between adhesive layers.
Heating & Pressure System: Offers precision temperature control (0-200°C) and even pressure distribution through pneumatic or hydraulic systems.
Multi-layer Compatibility: Capable of processing various materials such as glass, PET films, PC boards, and optical adhesives (OCA). It handles different thicknesses and sizes.
Automated Operation: Equipped with a PLC control system and touchscreen interface, allowing programmable parameters for different material combinations.

Product Parameter

Place of Origin:	Guangdong, China	Brand Name:	zhongtuautotion
Condition:	New	Weight (KG):	30KG
Video outgoing-inspection:	Provided	Machinery Test	Provided
Marketing Type:	Hot Product	Warranty of core components:	100% quality inspection
Core Components:	100% quality inspection	Warranty:	1 Year
Applicable Industries:	Machinery Repair Shops, Retail, Other, Phone Repair	Core Components	PLC, Motor, Pump
Voltage:	220V / 110V 50/60HZ	Product name:	16 inch OCA Laminating Machine
Power:	500W	Dimension(LWH):	404050cm
Keyword:	Easy Operation	Function:	Lamina Glass With LCD Screen by Vacuum
Used for:	Lcd Display Screen Touch Glass Laminating	Application:	Fit for All Broken Smart Phone LCD Fix
Type:	Automatic	Air Compressor:	Needed ( Can share the same air compressor with bubble remover ) and Vacuum Pump:
Suitable for product size:	or All smart Phone , tablets under 12inch	Advantage:	High fit efficiency and quality assurance.
Feature 1:	Easy setup ,works great for hot Press Part and Edge LCD Series.
Feature 2:	Vacuum Lamination which protect LCD Screen well.
Time:	Very fast ,Only need 15 seconds for each screen

Detail Photos

Function Introduction

1. Table handling is easy to place on the production line.
2. Optional English marked body, international.
3. The upper/lower template temperature can be set to 0-180 degrees. The temperature can be set and adjusted.
4. Adjustable vacuum time, adjustable pressure holding time, adjustable pressure holding pressure.
5. Pre-holding time, preheating time, extraction time, post height and pressing time can be set.
6. Auto-complete prompt function.

Description

1. Supply: AC110/AC220V 50/60Hz.

2. Laminating plate size:18 inches
3. External vacuum pump and air compressor makes lamination more powerful.

4. Auto setting mode: when laminating can chosse auto mode for edge or flat screen.
5. Fully Automatic , Easy Operation , Work for All Smartphone LCD Screen Lamination , ok with Edge Models too .

6. Application: for all tablet model and all cell phone including edge repairing for Phone,Samsuang, Huawei, LG,HTC, OPPO,VIVO,etc and more brands.

Our Advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve information level.

5.Improve product yield.

6.Provide Customers Withthe Most Advanced

System Solutionsfor Automation Equipment.

Our Services

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product , 3. Answer the questions raised by customers.	1.Support video service, 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7.May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
