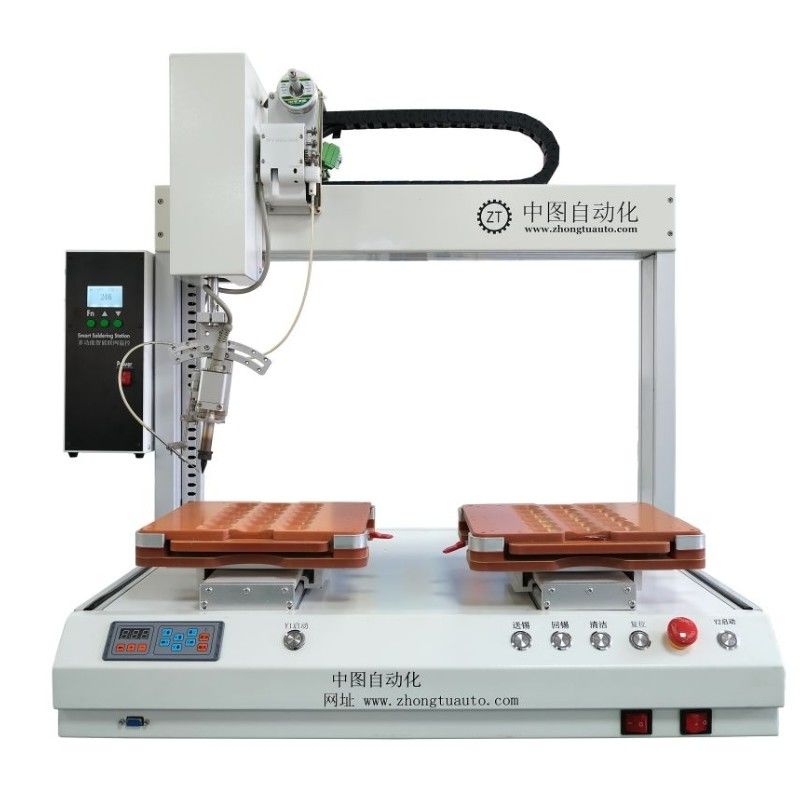

ZT Ultra Precision Automatic Soldering Machine AC 110~230V

Name: ZT Ultra Precision Automatic Soldering Machine AC 110~230V
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ441-R

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 3100-3500/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Ultra Precision Automatic Soldering Machine, AC 110V Automatic Soldering Machine, Automatic Soldering Robot AC230V


Product Name:	Automatic Soldering Machine	Model NO.:	ZT-HXJ441-R
Video Outgoing-Inspection:	Provided	Core Components:	PLC, Motor
Voltage:	AC 110~230V	Transport Package:	Wooden Box
Specification:	807885cm	Trademark:	ZT
Origin:	Shenzhen, Guangdong, China	Soldering Iron Tip:	Replaceable
Xyz Range:	X400Y:400 Z100mm	Editing Mode:	Teaching Pendant
Power Consumption:	100W	Soldering Speed:	Adjustable
Soldering Tip Temperature Stability:	±2℃	Repeatability Accuracy:	±0.02mm

Product Name:	Automatic Soldering Machine
Model NO.:	ZT-HXJ441-R
Video Outgoing-Inspection:	Provided
Core Components:	PLC, Motor
Voltage:	AC 110~230V
Transport Package:	Wooden Box
Specification:	807885cm
Trademark:	ZT
Origin:	Shenzhen, Guangdong, China
Soldering Iron Tip:	Replaceable
Xyz Range:	X400Y:400 Z100mm
Editing Mode:	Teaching Pendant
Power Consumption:	100W
Soldering Speed:	Adjustable
Soldering Tip Temperature Stability:	±2℃
Repeatability Accuracy:	±0.02mm

Product Description

ZT Ultra-Precision Automatic Soldering Machine - Unrivaled Quality & Speed

The automatic soldering machine can be used for high-speed drag welding, spot welding, diagonal welding and so on. The phenomenon of uneven solder joints and virtual welding caused by artificial repetitive welding is solved. The biggest advantage is that the solder joint is consistent and the quality is stable. And can improve efficiency, save manpower. Automatic soldering machine is simple to operate, high production efficiency, good welding quality, environmental protection and energy saving, beginners can also achieve the welding effect of skilled workers. The machine uses simple and fast input solder program, its software and has a powerful editing function, can easily and quickly complete the program teaching.

Product Parameter:

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification:

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

ZT Ultra Precision Automatic Soldering Machine AC 110~230V 0

ZT Ultra Precision Automatic Soldering Machine AC 110~230V 2

ZT Ultra Precision Automatic Soldering Machine AC 110~230V 4

Our advantage:

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
