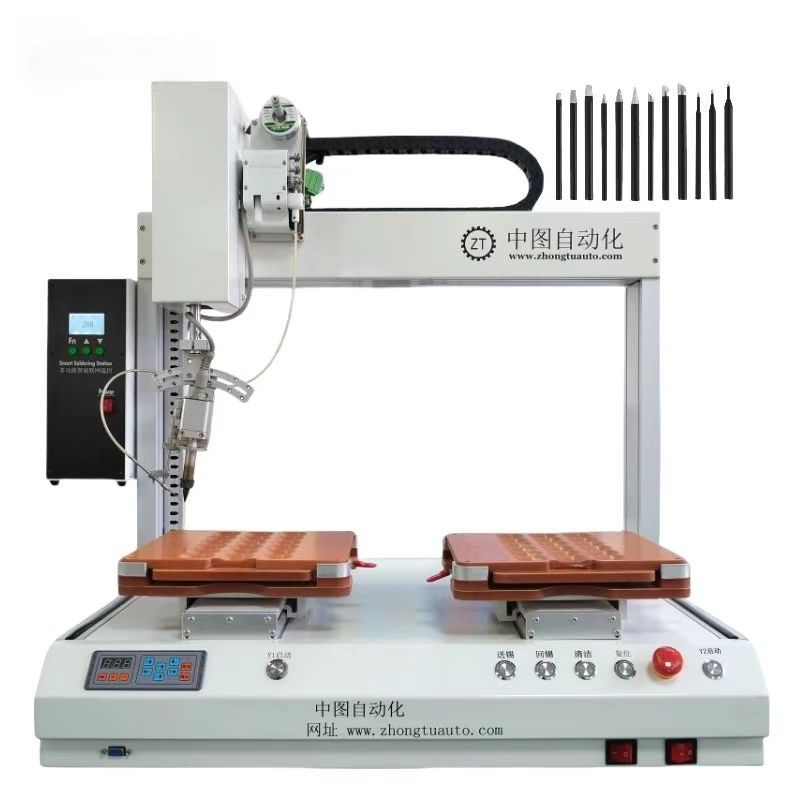

ZT Multifunctional Automatic Soldering Machine 5 Axis For PCB

Name: ZT Multifunctional Automatic Soldering Machine 5 Axis For PCB
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ441-R

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 3100-3500/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Multifunctional Automatic Soldering Machine, 5 Axis Automatic Soldering Machine, PCB Automatic Soldering Machine


Product Name:	Automatic Soldering Machine	Soldering Iron Tip:	Replaceable
Editing Mode:	Teaching Pendant	Soldering Iron Heating Time:	Less Than 10 Seconds
Xyz Range:	X400Y:400 Z100mm	Solder Robert:	Soldering Robert For PCB
Axis:	5	Solder Wire Diameter:	0.5, 0.6, 0.8, 1.0, 1.2mm
Model:	AS-100	Repeatability Accuracy:	±0.02mm
Soldering Iron Temperature:	200-480℃

Product Name:	Automatic Soldering Machine
Soldering Iron Tip:	Replaceable
Editing Mode:	Teaching Pendant
Soldering Iron Heating Time:	Less Than 10 Seconds
Xyz Range:	X400Y:400 Z100mm
Solder Robert:	Soldering Robert For PCB
Axis:	5
Solder Wire Diameter:	0.5, 0.6, 0.8, 1.0, 1.2mm
Model:	AS-100
Repeatability Accuracy:	±0.02mm
Soldering Iron Temperature:	200-480℃

Product Description

ZT Multi-Functional Automatic Soldering Machine For Diverse Applications

Automatic soldering machine is widely used in the following fields:

• Electronic manufacturing industry: Used for the welding of motherboards, wires, connectors and other electronic components of mobile phones, computers, tablets and other electronic products.

• Communication equipment industry: Used for communication base stations, optical modules, routers and other communication equipment circuit board welding.

• Automotive electronics industry: Used for welding automotive electronic components such as automotive electronic control units, sensors, wire harnesses, etc.

• Medical device industry: welding of electronic components such as circuit boards, sensors and connecting wires for medical devices.

• Other industries: can also be used in aerospace, military, home appliances and other industries of electronic components welding.

Product Parameter:

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification:

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

ZT Multifunctional Automatic Soldering Machine 5 Axis For PCB 0

ZT Multifunctional Automatic Soldering Machine 5 Axis For PCB 2

ZT Multifunctional Automatic Soldering Machine 5 Axis For PCB 4

Our advantage:

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
