Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire

Name: Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ4411-02R
Price: 5,225.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ4411-02R

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5150-5300/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Days

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                            Auto Welding Equipment Soldering Machine, Wire Soldering Machine


Product Name:	Atomatic Soldering Machine	Repeatability Accuracy:	±0.02mm
Weight:	65kg	Temperature Range:	200-480℃
Operating Range:	X500* Y1/300Y2/300Z100mm（XxYxYxZ）	Soldering Iron Tip:	Replaceable
Air Source:	0.4-0.6MPA	Power Supply:	AC 220V/50Hz
Soldering Iron Stand:	Included	Application Scope:	Wire Harness & Connector Soldering
Core Differentiation Selling Points:	Stable Temperature, High Welding Yield

Product Name:	Atomatic Soldering Machine
Repeatability Accuracy:	±0.02mm
Weight:	65kg
Temperature Range:	200-480℃
Operating Range:	X500* Y1/300Y2/300Z100mm（XxYxYxZ）
Soldering Iron Tip:	Replaceable
Air Source:	0.4-0.6MPA
Power Supply:	AC 220V/50Hz
Soldering Iron Stand:	Included
Application Scope:	Wire Harness & Connector Soldering
Core Differentiation Selling Points:	Stable Temperature, High Welding Yield

Product Description

Advanced Dual Head Double Platform Solder Robot Soldering Equipment for Auto Industry

Practical product features

1. Rapid heating and efficient welding: Adopting high-efficiency heating components, the machine achieves ultra-fast temperature rise to reach the preset welding temperature in seconds. It supports a wide temperature adjustment range, allowing flexible parameter configuration for diverse welding materials and processing standards. Paired withdual-station alternating working mode, it eliminates idle waiting time, greatly boosting overall welding efficiency and ensuring consistent high-quality welding results for mass production.

2. Intelligent temperature control, stable and reliable: Built-in high-precision intelligent constant temperature system realizes real-time monitoring and precise adjustment of welding temperature, effectively avoiding defective products caused by excessive or insufficient temperature. The equipment will trigger an automatic alarm and stop operation once abnormal temperature is detected, stabilizing the entire welding process. In addition, the intelligent temperature control system reduces frequent temperature fluctuations, greatly extending the service life of heating elements and cutting daily equipment maintenance costs.

3. Multi-functional & replaceable welding head: Equipped with multiple interchangeable welding heads of different specifications to meet diversified welding process requirements. Fine pointed welding heads are tailored for micro-precision welding of small components such as connectors and circuit board pins, while flat welding heads adapt to large-area and wide-range welding tasks. Users can replace the welding heads freely according to actual production needs, significantly improving the equipment’s versatility and production flexibility for various workpiece processing.

4. Comprehensive safety protection system: The machine is equipped with complete built-in safety mechanisms including overheat protection, overcurrent protection and short circuit protection to guarantee safe and stable operation. The whole machine shell adopts high-temperature resistant and heat-insulating premium materials, which effectively prevents scald accidents during high-temperature welding operation, eliminates potential safety hazards, and ensures long-term safe and uninterrupted industrial production.

Product Parameter:

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen,China
Applicable Industries:	Manufacturing Plant,SMT,DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	85Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	1000750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification:

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

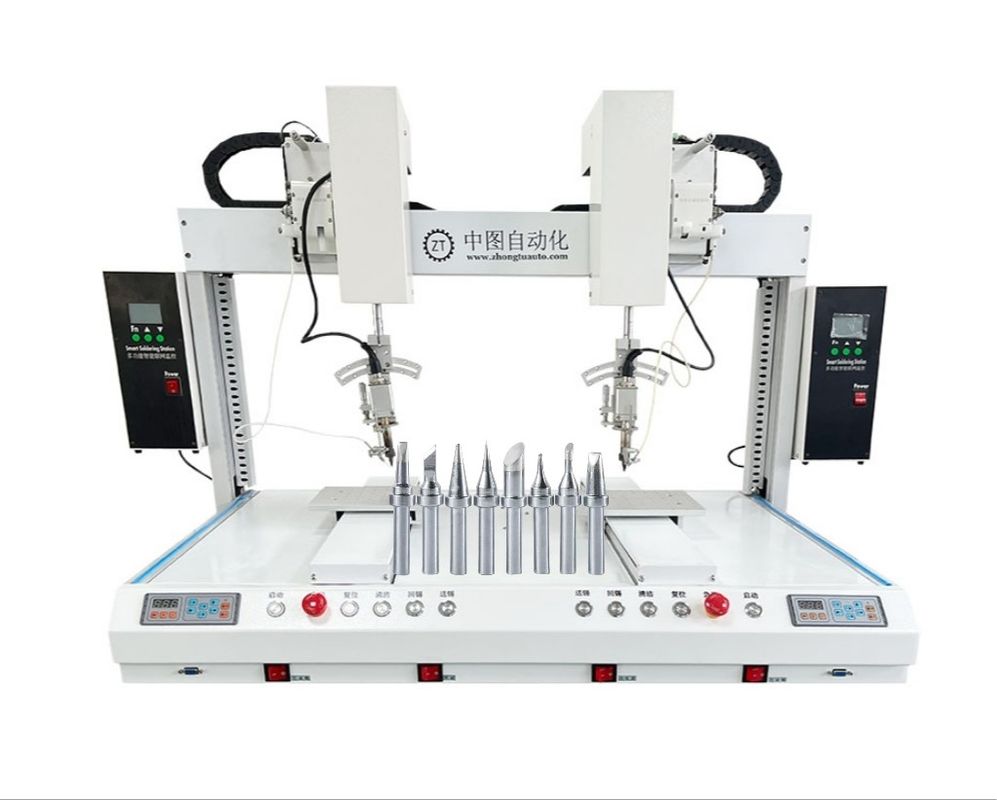

Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire 0

Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire 1

Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire 3

Auto Welding Equipment Fully Automatic Soldering Machine Soldering Robot For Wire 4

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
