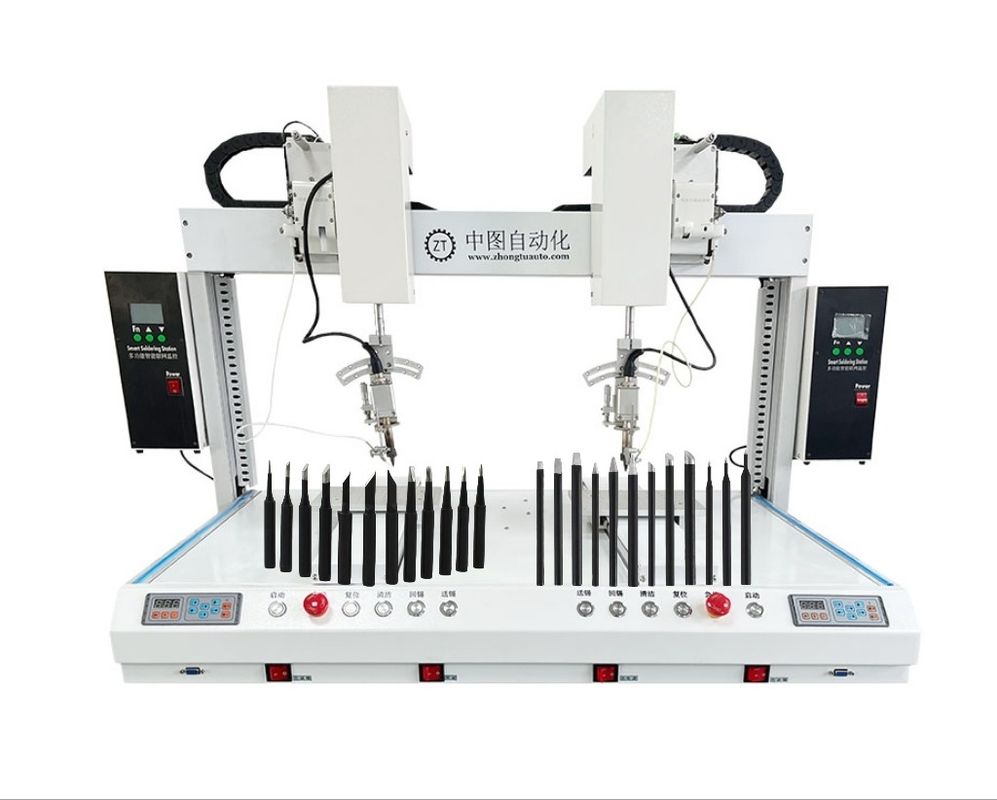

5 Axis Desktop Automatic Welding Robot Two Station Soldering Machine

5 Axis Desktop Welding Robot Two Station Automatic Soldering Machine

 Product functions:

• Diversified welding functions:

• Spot welding: It can accurately weld the specific solder joints of electronic components in a short time, which is suitable for electronic components that need to be fixed welding in a local position, such as small resistors, capacitors, etc., and circuit boards.

• Drag welding: For the need for continuous welding of the line or solder joint arrangement is more regular, such as line welding on the circuit board, the drag welding function can quickly and efficiently complete the welding work to ensure the continuity and stability of the welding.

• Arc welding: It can be used in some scenes with high welding strength requirements. The high temperature generated by the arc will melt the solder and connect the electronic components, and the welding effect is firm.

• Bias welding: For some special shape or position of electronic components, such as the edge of the circuit board, corner and other positions of the components, the bias welding function can flexibly adjust the welding Angle to achieve accurate welding.

• Shake welding: This function can make the solder evenly distributed in the welding process to avoid solder accumulation or insufficient welding, suitable for precision electronic components welding with high welding quality requirements.

• Automatic tin feed function:

• Constant speed tin feed: According to the preset parameters, the solder wire is transmitted to the welding site at a stable speed to ensure that the amount and speed of each tin feed are consistent, so as to ensure the consistency and stability of the welding.

• Quantitative tin feeding: The length or weight of the tin feeding can be accurately controlled to meet the needs of different electronic components for the amount of solder, so as to avoid affecting the welding quality due to too much or too little solder.

• Multi-stage tin feed: For some complex welding processes, such as the need to use different tin feed amounts or tin feed speeds in different stages, the multi-stage tin feed function can be phased according to the preset procedure, improving the accuracy and quality of welding.

• Automatic cleaning function: Impurities such as tin residue will be left on the tip of the soldering iron during the welding process. The automatic cleaning function can clean the tip of the soldering iron through air blowing, sponge, brush and other ways to keep the cleaning of the soldering iron tip, ensure the welding quality, and extend the service life of the soldering iron tip.

• Temperature control function:

• Precise temperature control: Built-in high-precision temperature sensor, can monitor the temperature of the soldering iron head in real time, and through the temperature control system to accurately control the heating body, so that the temperature is kept within the set range. For example, for some temperature-sensitive electronic components, such as chips, precise temperature control can avoid component damage due to too high or too low temperature.

• Rapid heating and reheating: The use of high-power heating core can heat the soldering iron head to the working temperature in a short time, and in the welding process, when the temperature of the soldering iron head is reduced due to welding heat dissipation, it can be quickly reheated to ensure the continuity and efficiency of welding.

• Program editing and storage functions:

• Program editing: Users can edit and adjust welding parameters (such as welding speed, tin feed, temperature, welding time, etc.) and motion trajectory according to different welding needs through the device's operating interface or programming software to adapt to different types of electronic components and welding processes.

• Program storage: the edited welding program can be stored in the memory of the device, which is convenient to call directly when the next use, improving production efficiency. At the same time, different product welding procedures can also be classified and managed, which is easy to find and switch quickly.

 Product Parameter:

Specification:
