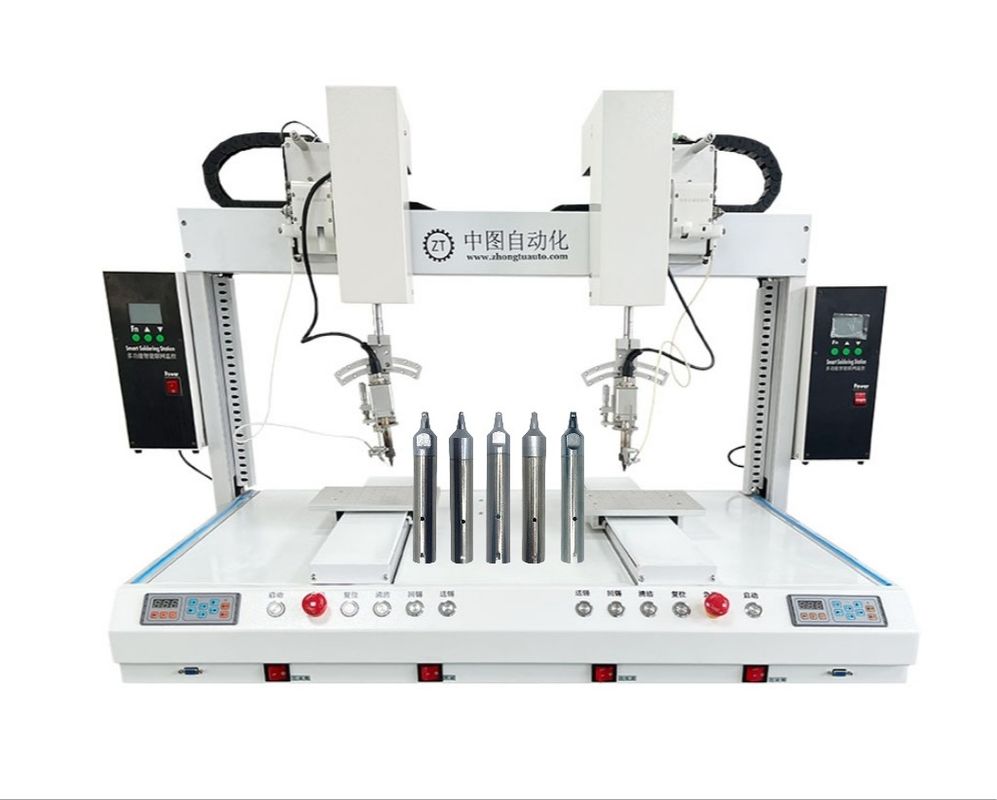

Double Heads Automatic Soldering Machine Desktop Welding Robot

Name: Double Heads Automatic Soldering Machine Desktop Welding Robot
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ4411-02R
Price: 5,225.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ4411-02R

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5150-5300/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Days

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Double Heads Automatic Soldering Machine, Double Heads Welding Robot, Desktop Welding Robot


Product Name:	Atomatic Soldering Machine	Specification:	1007885cm
Transport Package:	Wooden Box	Soldering Wire Diameter:	0.5-1.2mm
Repeatability Accuracy:	±0.02mm	Soldering Temperature:	200-450℃
Solder Robert:	Soldering Robert For PCB	Power Consumption:	200W

Product Name:	Atomatic Soldering Machine
Specification:	1007885cm
Transport Package:	Wooden Box
Soldering Wire Diameter:	0.5-1.2mm
Repeatability Accuracy:	±0.02mm
Soldering Temperature:	200-450℃
Solder Robert:	Soldering Robert For PCB
Power Consumption:	200W

Product Description

Desktop Welding Machine Double Heads Automatic Soldering Machine Robot

"Automatic Soldering machine: Efficient and accurate welding tool"

Automatic soldering machine plays an important role in modern electronic manufacturing. Its products have rich functions and significant advantages.

In terms of function, it has a precise positioning function, can accurately find the solder joint, to ensure that the welding position is correct. The automatic tin feeding system can precisely control the amount of tin and avoid waste. At the same time, the temperature can be intelligently regulated to adapt to different welding needs. Program editing and storage can also be carried out to facilitate repeated operations.

In terms of advantages, the first is the high welding quality, the solder joint is uniform and firm, and the virtual welding is reduced. Secondly, the production efficiency is greatly improved, the speed is far faster than manual welding, and continuous operation can be performed. In addition, it saves manpower cost, and one machine can replace many people's work. And the operation is safe to avoid the risk of manual welding. Finally, it is adaptable and suitable for welding of various electronic components and circuit boards, providing a strong help for enterprise production.

Product Parameter:

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen,China
Applicable Industries:	Manufacturing Plant,SMT,DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	85Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	1000750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification:

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

Double Heads Automatic Soldering Machine Desktop Welding Robot 0

Double Heads Automatic Soldering Machine Desktop Welding Robot 1

Double Heads Automatic Soldering Machine Desktop Welding Robot 3

Double Heads Automatic Soldering Machine Desktop Welding Robot 4

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
