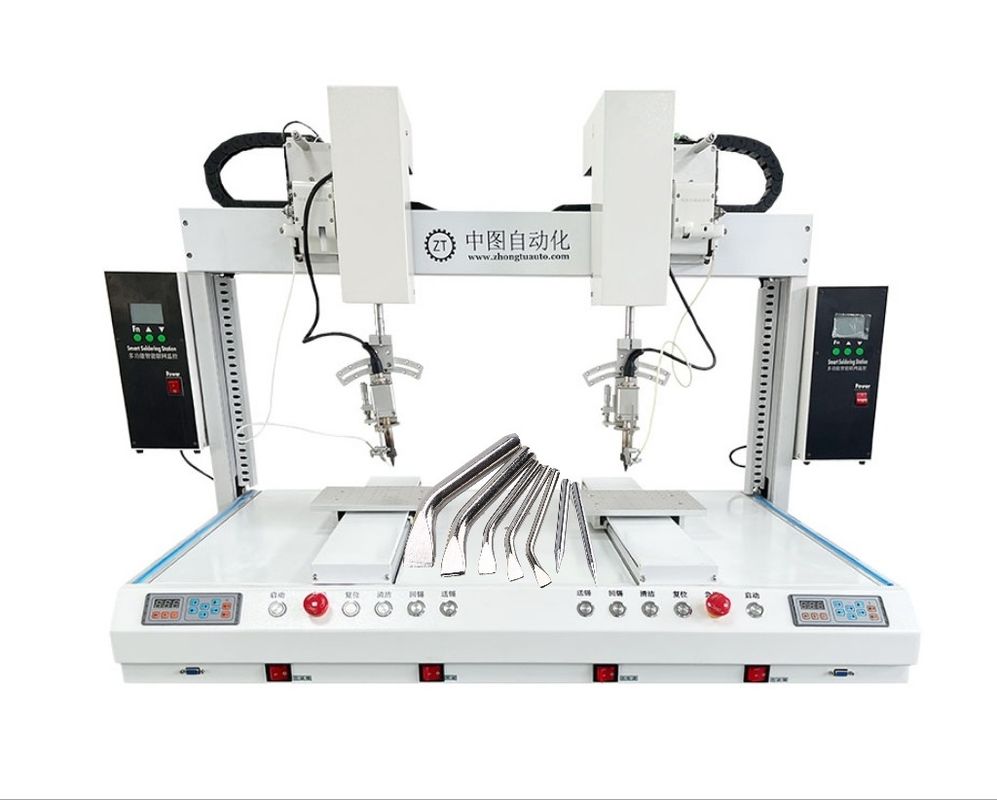

High Speed 5 Axis Automatic Soldering Machine PCB Robot Welding Machine
Product function
1. Precise welding
The automatic soldering machine is equipped with a high-precision motion control system, which can accurately position the welding position to ensure that every solder joint is accurate. Whether it is a small electronic component or a complex circuit board, it can easily cope with the precise welding.
2. Multiple welding modes
It has spot welding, drag welding, continuous welding and other welding modes, can be selected according to different welding needs. Spot welding is suitable for the welding of a single solder joint, and drag welding is suitable for continuous welding line operations. Continuous welding can quickly complete the simultaneous welding of multiple solder joints, which greatly improves the welding efficiency.
3. Automatic tin delivery
Through the advanced tin feed system, the automatic soldering machine can automatically transport the solder wire, and can precisely control the tin feed amount and tin feed speed. This not only ensures the stability of welding, but also reduces the waste of solder and reduces the production cost.
4. Temperature control
The built-in intelligent temperature control system can monitor and adjust the temperature of the soldering iron head in real time. Whether it is welding low-temperature sensitive components or materials with high temperature requirements, it can ensure that the welding temperature is just right to avoid affecting the welding quality due to too high or too low temperature.
5. Program editing and storage
Users can edit and store welding programs according to different product requirements through a simple and easy to use interface. Once the setting is complete, the next use only needs to call the corresponding program, which greatly improves the flexibility and efficiency of production.
Product Parameter:
|
Name:
|
Automatic Soldering Robot
|
Place of Origin:
|
ShenZhen,China
|
|
Applicable Industries:
|
Manufacturing Plant,SMT,DIP
|
Key Selling Points:
|
Automatic
|
|
Video outgoing-inspection:
|
Provided
|
Weight (KG):
|
85Kg
|
|
Marketing Type:
|
New Product 2024
|
Voltage:
|
220/110V 50~60Hz
|
|
Warranty period:
|
1 Yea
|
Dimensions:
|
1000*750*850mm
|
|
Warranty of core components:
|
3 Years
|
Solder Wire:
|
0.6~1.5mm solder wire
|
|
Core Components:
|
PLC
|
Temperature Accuracy
|
±3°
|
|
Power:
|
680W
|
Solder Feeding Speed
|
1~50mm/s
|
|
Current:
|
5A
|
Repeate Accuracy
|
±0.02mm
|
Specification:
|
|
|
ZT-HXJ441-R
|
ZT-HXJ4411-02
|
ZT-HXJ4411-02R
|
|
|
|
|
|
200/400W
|
200/400/600W
|
|
Heating Temperature Range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
256MB, up to 999 files, single file up to 1000 points
|
|
|
|
|
|
|
|
|
|
|
|
|
600*750*850
|
800*750*850
|
850*750*850
|
1000*750*850
|
|
Detail Photos:
Our Services:
|
Pre-Sale
|
In Sale |
|
|
1.Product Introduction,
2.Technical Communication,
3.Remote consulting service.
|
1. Show the product,
2. Explain in detail how to use the product.
3. Answer the questions raised by customers.
|
1.Support video service.
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.
|
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
