Single Head Single Station Fully Automatic Tin Soldering Machine

Name: Single Head Single Station Fully Automatic Tin Soldering Machine
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ041-R
Price: 2,790.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE

Model Number: ZT-HXJ041-R

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: USD2580-3000/SET

Packaging Details: Wooden Box

Delivery Time: 15-30Day

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Single Station Tin Soldering Machine, Single Head Tin Soldering Machine, Fully Automatic Tin Soldering Machine


Product Name:	Automatic Soldering Machine	Video Outgoing-Inspection:	Provided
Transport Package:	Wooden Box	Xyz Range:	X500Y:300 Z100mm
Air Source:	0.4-0.6MPA	Soldering Iron Tip:	Replaceable
Solder Robert:	Soldering Robert For PCB	Control System:	PLC
Solder Wire Diameter:	0.5, 0.6, 0.8, 1.0, 1.2mm

Product Name:	Automatic Soldering Machine
Video Outgoing-Inspection:	Provided
Transport Package:	Wooden Box
Xyz Range:	X500Y:300 Z100mm
Air Source:	0.4-0.6MPA
Soldering Iron Tip:	Replaceable
Solder Robert:	Soldering Robert For PCB
Control System:	PLC
Solder Wire Diameter:	0.5, 0.6, 0.8, 1.0, 1.2mm

Product Description

Single Head Single Station Fully Automatic Tin Soldering Machine

Automatic soldering machine in modern industrial production shows many outstanding product advantages.

Product Advantage

1. It significantly improves production efficiency by reducing the time and labor required for manual soldering.

2. It enhances soldering quality with high precision and repeatability, minimizing soldering defects.

3. It can work continuously for a long time, improving overall production capacity.

4. It helps to reduce operator fatigue and potential errors, creating a safer and more reliable production environment

Product parameter

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen,China
Applicable Industries:	Manufacturing Plant,SMT,DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detailed pictures

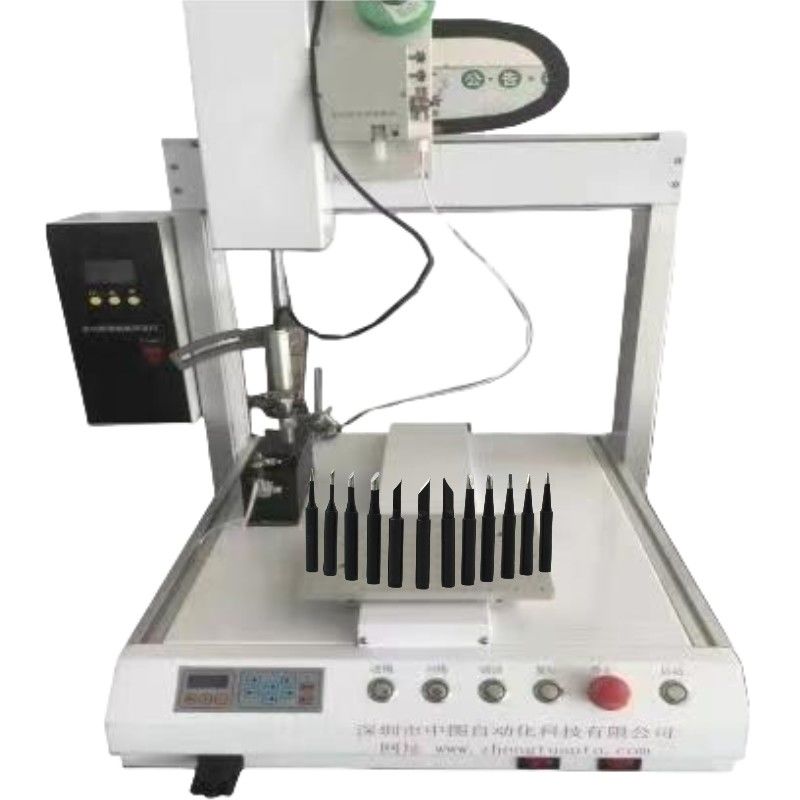

Single Head Single Station Fully Automatic Tin Soldering Machine 0

Our advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.ProvideCustomersWiththeMostAdvanced

SystemSolutionsforAutomationEquipment.

Our Services

Pre-sale	In Sale	After Sale
1.Product Introduction 2.Technical Communication 3.Remote consulting service	1. Show the product 2. Explain in detail how to use the product 3. Answer the questions raised by customers.	1.Support video service 2.The whole equipment is guaranteed for 1 year 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ
1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
