Consistency Made Easy Automatic Soldering Machine with 200W Heating Power and Ceramic Tip

Name: Consistency Made Easy Automatic Soldering Machine with 200W Heating Power and Ceramic Tip
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZT

Certification: CE, ISO, RoHS

Model Number: ZT-HXJ441-R

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 3100-3500/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Consistency Made Easy Automatic Soldering Machine, Ceramic Tip Automatic Soldering Machine, 200W Automatic Soldering Machine


Soldering Height:	0-100mm	Core Components:	PLC, Motor
Transport Package:	Wooden Box	Soldering Tip Material:	Copper
Soldering Smoke Absorber:	Optional	Soldering Wire Diameter:	0.5-1.2mm
Power:	680W	Soldering Tip:	Ceramic
Air Source:	0.4-0.6MPA	Heating Power:	200W

Soldering Height:	0-100mm
Core Components:	PLC, Motor
Transport Package:	Wooden Box
Soldering Tip Material:	Copper
Soldering Smoke Absorber:	Optional
Soldering Wire Diameter:	0.5-1.2mm
Power:	680W
Soldering Tip:	Ceramic
Air Source:	0.4-0.6MPA
Heating Power:	200W

Product Description

The Automatic Soldering Machine Ensure The Consistency And Stability Of The Products

Application

The control system can precisely calculate and control the movement of the soldering head, ensuring that the thickness, width and position of the solder coating all meet the design requirements. This not only guarantees the consistency of the welding effect, but also reduces problems such as uneven solder coating or position deviation caused by manual operation.
The high efficiency, precision and consistency of automatic soldering machines make them one of the indispensable equipment on modern production lines. Through automatic soldering machines, enterprises can achieve automated production, enhance production efficiency, reduce labor costs, and ensure high quality and stability of products, thereby maintaining competitive advantages in the highly competitive market.

Product Parameter

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos

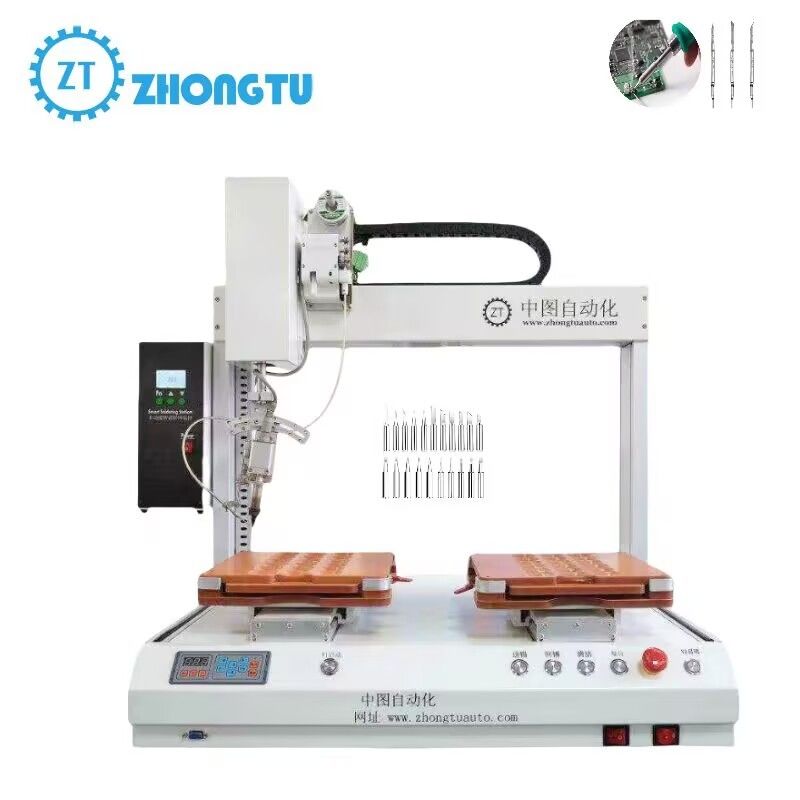

Consistency Made Easy Automatic Soldering Machine with 200W Heating Power and Ceramic Tip 0

Consistency Made Easy Automatic Soldering Machine with 200W Heating Power and Ceramic Tip 1

Consistency Made Easy Automatic Soldering Machine with 200W Heating Power and Ceramic Tip 2

Our advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
