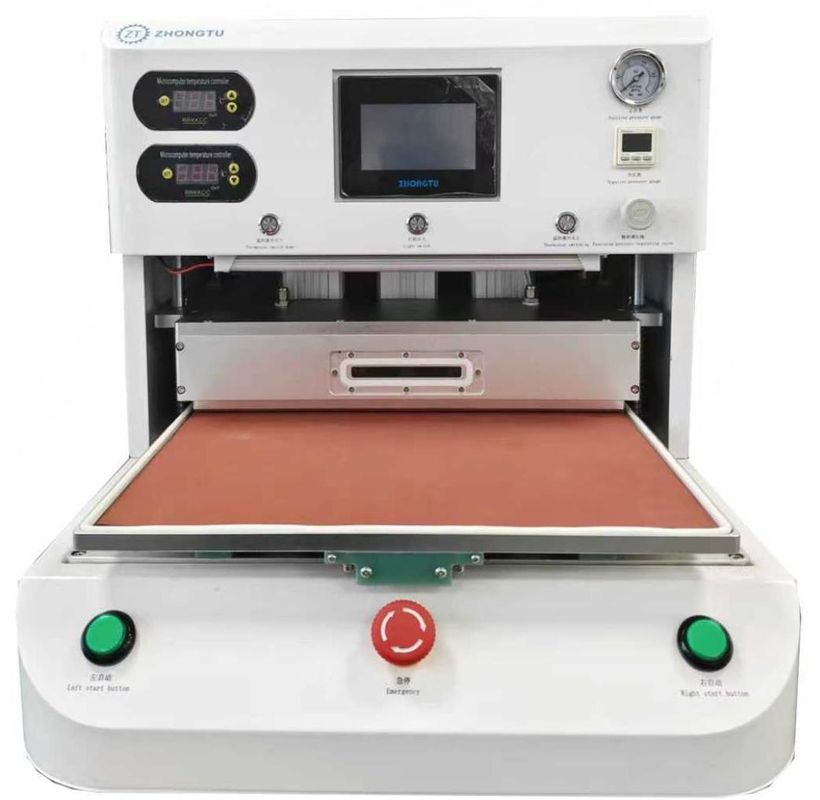

No Bubble Digital Vacuum Bonding Press machine For Electronic Film Laminating

Model

ZT-ZQBY510(9inch)

ZT-ZQBY310(15inch)

ZT-THJ036(32inch)

Equipment Application

Used for vacuum lamination of various precision products, especially suitable for lamination of electronic display products such as mobile phones and tablets. It can achieve bubble-free and high transmittance lamination effect, and can also adapt to the lamination needs of various types of products such as curved surfaces and flat surfaces

Applicable Industries

Electronic manufacturing, optical component processing and other industries

Power

Approx. 850W

Approx. 1200W

Approx. 2200W

Input Voltage

AC 110-240V/50-60HZ

Overall Machine Dimensions (L/W/H)

400 × 500 × 500mm

510mm × 640mm × 500mm

930mm × 1400mm × 1350mm

Effective Platform Dimensions (L/W/H)

290 × 220 × 45mm

400mm × 640mm × 50mm

700mm × 490mm × 50mm

Transmission Method

Pneumatic transmission, upper and lower pressing type

Precision Guide Rail

Taiwan HIWIN/TBI Brand

Lamination Precision

±0.1mm (meets the precision requirements of precision lamination equipment)

Control System

Touch screen + PLC,enabling precise parameter setting and control

Vacuum Range

0~150Kpa, adjustable according to operation needs to ensure bubble-free lamination

Upper and Lower Platforms

Heatable, temperature adjustment range 0~85℃

Parameter Settings

Adjustable pressing force and  holding time, to suitable different products

Communication Method

USB + R232

Operating Environment Humidity

20-90%

Operating Air Pressure

4-8KGF/C ㎡

Operating Vacuum

Need used with the dedicated vacuum pump ( configured by customer)

weight

30KG

35KG

350KG
