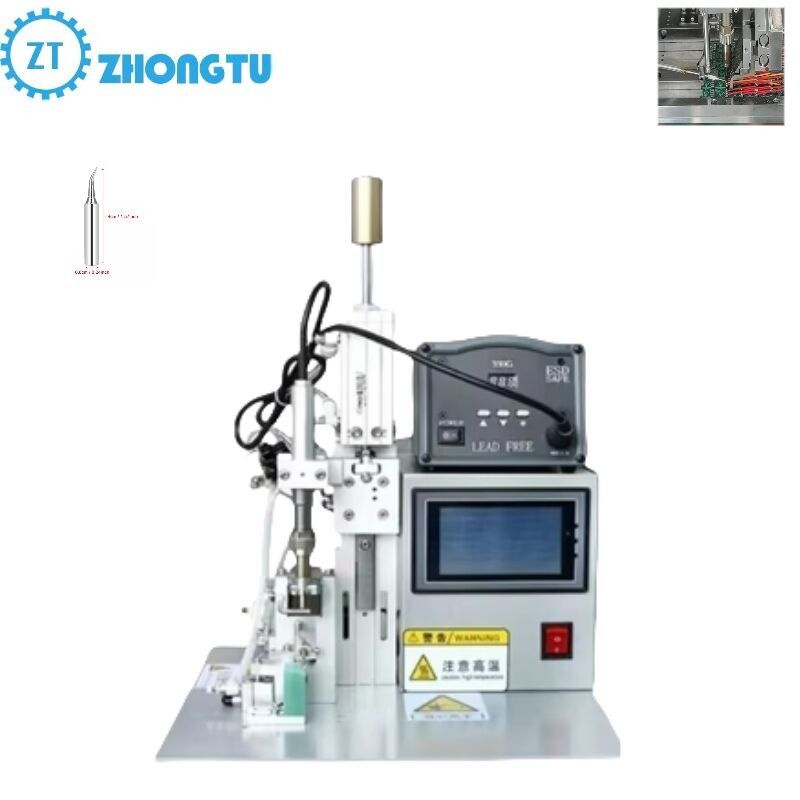

ZHONGTU Uniform Solder Feeding Semi-Automatic Connector Soldering Integrated Machine
Our next-gen integrated semi-automatic solder feeding & soldering machine is tailor-made for precision electronic connector assembly, standing apart from ordinary separate soldering stations. Equipped with a synchronized uniform solder wire feeding module, it eliminates manual wire threading errors and inconsistent solder volume that plague conventional models. Featuring stepless adjustable constant temperature + multi-group customizable soldering programs, it seamlessly shifts between tiny precision connectors and large batch PCB assemblies, drastically slashing cycle time while delivering consistent, defect-free solder joints every time. The intuitive touch HMI finishes parameter calibration within 3 minutes and real-time tracks temperature, solder output and production throughput. Built-in anti-wrong-operation safety interlocks and thickened industrial frame cut down vibration during long-hour nonstop running, greatly extending service life. Replace your discrete soldering equipment with our all-in-one soldering system to boost your workshop output, stabilize soldering yield and cut overall production labor costs.
Machine Components
- Soldering Iron: Detachable design with precise temperature control
- Control System: Manages temperature and timing parameters
- Feeder Mechanism: Automatically supplies solder wire
- Work Platform: Stable surface for component placement
- Cooling System: Ensures proper joint solidification
Industrial Applications
Ideal for wire harness soldering, data line connections (USB, micro USB, Type-C, HDMI), motor wires, PCB boards, LED lighting systems, electronic components, switches, and various connectors.
Product Specifications
| Soldering Iron |
Detachable design |
| Temperature Range |
200-450℃ |
| Soldering Tin Size |
OD 0.6~1.2mm (saves 15% tin consumption) |
| Transmission |
Pedal operation |
| Model |
SA-100 |
| Applicable Connectors |
DC/RCA/TV connectors, solid plugs, etc. |
Technical Parameters
| Place of Origin |
ShenZhen, China |
| Applicable Industries |
Manufacturing Plant, SMT, DIP |
| Input air pressure |
0.4-0.8Mpa |
| Weight |
20Kg |
| Voltage |
110-240V/50HZ Output 24V/2A |
| Warranty period |
1 Year |
| Dimensions |
400*400*500mm |
| Warranty of core components |
3 Years |
| Power |
160W |
| Temperature Accuracy |
±3° |
Product Images
Our Services
| Pre-sale |
In Sale |
After Sale |
- Product Introduction
- Technical Communication
- Remote consulting service
|
- Product demonstration
- Detailed usage instructions
- Customer question resolution
|
- Video support service
- 1-year full equipment warranty
- 3-year warranty for guide rail/motor/control parts
|
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2015, with 50-200 employees in our office.
How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct final inspection before shipment.
What can you buy from us?
Soldering machines, precision spot welding machines, glue dispensers, and screw machines.
Why should you buy from us instead of other suppliers?
We provide ultra-professional service and high-performance products at competitive prices. Your success is our success.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your Warranty for the product? How do you carry it out?
We provide 1-year warranty for the unit machine and 3-year warranty for the main board. Contact us for more details.
May I buy samples from you?
Yes! You are welcome to place sample orders to test our superior quality and service.
Are you a trading company or factory?
We are a professional manufacturer of automation machines since 2015.
